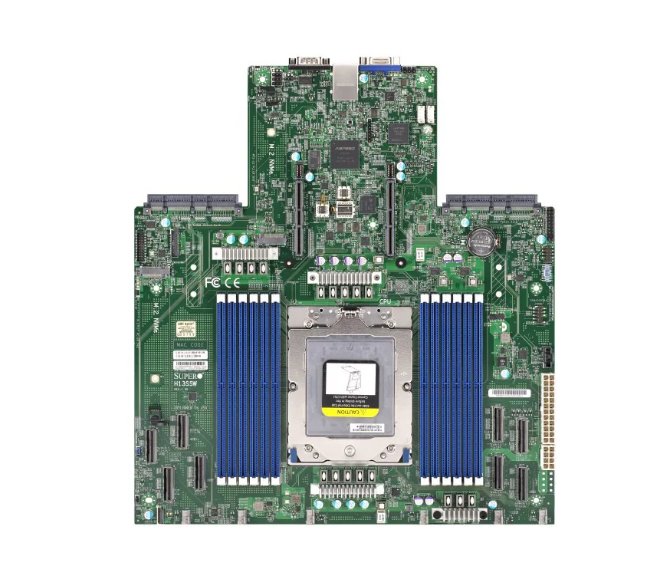

SUPERMICRO MB 1xSP5 (Epyc 9004), 12x DDR5, 8x SATA+6x NVMe/16xSATA+4xNVMe, PCIe 5.0 (1 x16, 1 x16)2xAIOM , ,IPMI | Netfox - eshop

Výrobce

Supermicro

Kód

AS-SR6286

Part No.

MBD-H13SSW

Dostupnost

Vaše cena bez DPH

27 910 Kč

DPH

21%

Vaše cena s DPH

33 771 Kč

Záruka

36 Měsíce

Objednat

Podrobnosti o produktu

Product SKUs

MBD-H13SSW

Processor
CPU	AMD EPYC™ 9004/9005 Series Processors (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x) Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core	Up to 160 cores, 320 threads

System Memory
Memory Capacity	12 DIMM slots Up to 4.5TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
Memory Type	4800/6000 MT/s ECC DDR5 RDIMM (3DS) Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, 1DPC) Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, 1DPC)* (*Board revision 2.x required)
DIMM Sizes	16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 port(s) (2 USB) 2 USB 2.0 port(s) (2 via header)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 Serial Port)
TPM	1 TPM Header
Others	6 MCIO (PCIe 5.0 x8) Port(s) 2 MCIO (PCIe 5.0 x8/SATA3) Port(s)

Expansion Slots
PCIe	1 PCIe 5.0 x16 Right Riser Slot, 1 PCIe 5.0 x16 Left Riser Slot, 2 PCIe 5.0 x16 AIOM Networking Slot
M.2	M.2 Interface: 2 PCIe 3.0 x2 Form Factor: 2280/22110 Key: M-Key

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support

Management
Software	SuperCloud Composer®, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities
Power Configurations	ACPI Power Management, Power-on mode control for AC power loss recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
Voltage	VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED	UID/Remote UID BMC/IPMI Heartbeat LED
Other Features	RoT
FAN	6x 4-pin fan headers (up to 6 fans)

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
