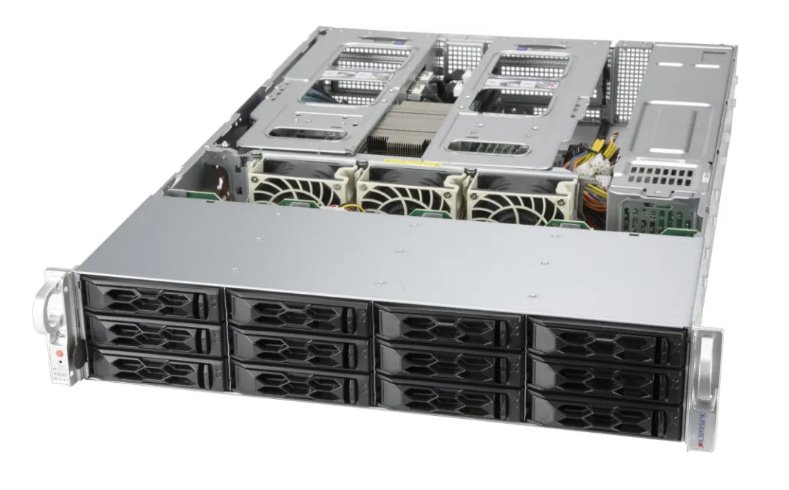

    SUPERMICRO AS-2014CS-TR-EU, Milan 7443 CPU, 4x 64GB DDR4-3200, AOC-S3916L-H16IR-32DD-O, 5x HDD, 3.5"",SAS, 20TB,7.2K ,

    SUPERMICRO AS-2014CS-TR-EU, Milan 7443 CPU, 4x 64GB DDR4-3200, AOC-S3916L-H16IR-32DD-O, 5x HDD, 3.5"",SAS, 20TB,7.2K ,

    Výrobce
    Supermicro
    Kód

    AS-SR0160

    Part No.

    AS-2014CS-TR-EU-OTO-77

    Dostupnost

    Není skladem

    (dostupnost na dotaz)
    Vaše cena bez DPH
    217 680 Kč
    DPH
    21%
    Vaše cena s DPH
    263 393 Kč
    Záruka
    36 Měsíce
    Objednat

    Do košíku
    Porovnat Nastavit hlídacího psa

      Podrobnosti o produktu

      Product SKUs
      A+ Server AS -2014CS-TR Standard version with PWS-920P-1R2 (Platinum Level)
      A+ Server AS -2014CS-TR-EU European version with PWS-1K23A-1R (Titanium Level)
      Motherboard
      Super H12SSW-AN6
      Processor
      CPU
      Note
      • Supports up to 280W TDP CPUs (Air Cooled)
      GPU
      Max GPU Count
      • Up to 2 double-width or 4 single-width GPUs
      Supported GPU
      • NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A16, A2, A100, A10
      • AMD PCIe: Instinct MI210, Instinct MI100
      • View GPU Options
      System Memory
      Memory
      • Slot Count: 16 DIMM slots
      • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
      • View Memory Options
      Memory Voltage
      • 1.2V
      On-Board Devices
      SATA
      • SATA (6Gbps)
      Chipset
      • System on Chip
      Network Connectivity
      IPMI
      • Support for Intelligent Platform Management Interface v.2.0
      • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
      Input / Output
      LAN
      • 1 RJ45 1 GbE Dedicated BMC LAN port
      USB
      • 2 USB 3.0 ports(rear)
      Video
      • 1 VGA port
      Serial
      • 1 COM port(Rear)
      System BIOS
      BIOS Type
      • AMI 256MB SPI Flash EEPROM
      Management
      Software
      Power configurations
      • ACPI/APM Power Management
      Security
      Hardware
      • Trusted Platform Module (TPM) 2.0
      • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
      Features
      • Cryptographically Signed Firmware
      • Secure Boot
      • Secure Firmware Updates
      • Automatic Firmware Recovery
      • System Lockdown
      PC Health Monitoring
      CPU
      • Monitors for CPU Cores, Chipset Voltages, Memory
      • 4+1 Phase-switching voltage regulator
      Temperature
      • Monitoring for CPU and chassis environment
      • Thermal Control for fan connectors
      FAN
      • Pulse Width Modulated (PWM) fan connectors
      • 3 fans with tachometer status monitoring, Status monitoring for speed control
      Chassis
      Form Factor
      • 2U Rackmount
      Model
      • CSE-LA26TS-R1K23AWP1
      Dimensions and Weight
      Height
      • 3.5" (89 mm)
      Width
      • 17.2" (437 mm)
      Depth
      • 25.5" (648 mm)
      Package
      • 11.4" (H) x 26.7" (W) x 34.5" (D)
      Weight
      • Gross Weight: 59 lbs (26.76 kg)
      • Net Weight: 33 lbs (15 kg)
      Available Color
      • Black front & sliver body
      Front Panel
      LED
      • Drive activity
      • Network activity
      • Power status
      • Universal Information (UID)
      Buttons
      • Power On/Off
      • Universal Information (UID)
      Expansion Slots
      PCI-Express (PCIe) Configuration
      • Default
        • 4 PCIe 4.0 x16 FH/10.5"L slots
        • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
      • View AOC Options
      M.2
      • 2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)
      Drive Bays / Storage
      Drive Bays Configuration
      • Default: Total 12 bays
        • 12 front hot-swap 3.5" SATA drive bays
      • Option A: Total 12 bays
        • 8 front hot-swap 3.5" SATA drive bays
        • 4 front hot-swap 3.5"/2.5" NVMe* drive bays
      • Option B: Total 12 bays
        • 12 front hot-swap 3.5" SAS* drive bays
      • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
      • View NVMe Options
      • View Drive Options
      M.2
      System Cooling
      Fans
      • 3 middle cooling 80x80x38mm Fan(s)
      Power Supply
      2x 920W Redundant (1 + 1) Platinum Level (94%) power supplies
      Dimension (WxHxL) 76 x 40 x 336 mm
      Input 920W: 100-127Vac
      920W: 100-127Vac / 50-60Hz
      920W: 200-240Vac
      920W: 200-240Vdc / 50-60Hz
      920W: 200-240Vac / 50-60Hz
      +12V Max: 75A / Min: 0A (100Vac-127Vac)
      Max: 75A / Min: 0A (200Vac-240Vac)
      5V SB Max: 4A / Min: 0A
      Output Type Backplanes (gold finger)
      Operating Environment
      ROHS
      • RoHS Compliant
      Environmental Spec.
      • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
      • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
      • Operating Relative Humidity: 8% to 90% (Non-Condensing)
      • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
