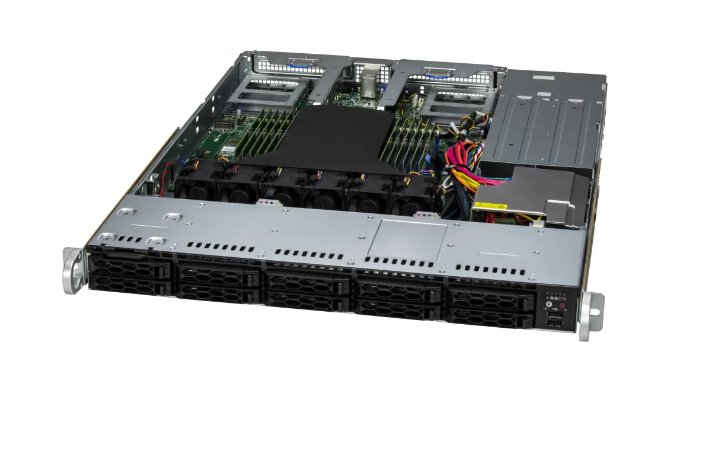

SUPERMICRO A+ Server 1U AS-1115CS-TNR Single AMD EPYC 9004/9005* Series Processor, Support up to DDR5 12 DIMM slots (1D | Netfox - eshop

Výrobce

Supermicro

Kód

AS-SR6277

Part No.

AS -1115SV-WTNRT

Dostupnost

Vaše cena bez DPH

46 270 Kč

DPH

21%

Vaše cena s DPH

55 987 Kč

Záruka

36 Měsíce

Objednat

Porovnat Facebook Nastavit hlídacího psa

Podrobnosti o produktu

Product SKUs

A+ Server AS -1115CS-TNR Standard version with PWS-860P-1R2 (Platinum Level)

A+ Server AS -1115CS-TNR-EU European version with PWS-861A-1R (Titanium Level)

A+ Server AS -1115CS-TNR-G1 Gold Series version with pre-configured components

Motherboard

Super H13SSW

Processor
CPU	Single processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count	Up to 160C/320T
Note	Supports up to 400W TDP CPUs * Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details. This system supports AMD EPYC™ 9004/9005 Series processors up to 400W TDP

GPU
Max GPU Count	Up to 2 single-width GPUs
Supported GPU	NVIDIA PCIe: L4, A2 View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe

System Memory
Memory	Slot Count: 12 DIMM slots Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) View Memory Options
Memory Voltage	1.1V

On-Board Devices
Chipset	System on Chip
Network Connectivity	Via AIOM View AIOM Options View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear) 2 USB 2.0 ports(front)
Video	1 VGA port
Serial	1 COM port(Rear)
TPM	1 TPM header

System BIOS
BIOS Type	AMI 32MB SPI Flash ROM
BIOS Features	ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism,

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support

Chassis
Form Factor	1U Rackmount
Model	CSE-LB16TS-R860AWP-A

Dimensions and Weight
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	23.5" (597 mm)
Package	7.8" (H) x 23.8" (W) x 32.4" (D)
Weight	Gross Weight: 46 lbs (20.9 kg) Net Weight: 25 lbs (11.3 kg)
Available Color	Black front & sliver body

Front Panel
LED	Drive activity Network activity Power status Universal Information (UID)
Buttons	Power On/Off Universal Information (UID)

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) View AOC Options

Drive Bays / Storage
Drive Bays Configuration	Default: Total 10 bays 10 front hot-swap 2.5" SATA drive bays Option A: Total 10 bays 10 front hot-swap 2.5" PCIe 5.0 NVMe* drive bays Option B: Total 10 bays 10 front hot-swap 2.5" SAS* drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) View NVMe Options View Drive Options
M.2	2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) View M.2 Options

System Cooling
Fans	6x 4cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud

Power Supply

2x 860W Redundant Platinum Level (94%) power supplies

Dimension (WxHxL)	54.5 x 40.25 x 322 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz
+12V	Max: 66.6A / Min: 0A (100Vac-127Vac) Max: 71.6A / Min: 0A (200Vdc-240Vdc) Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
