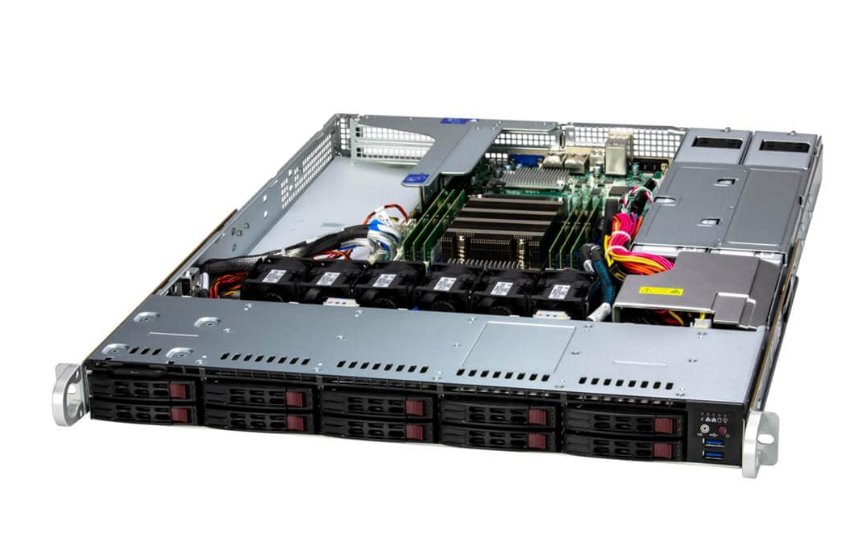

    SUPERMICRO A+ Server 1U 1x SP6, 6x DDR5, 10x 2,5" (6xNVMe opt 4xSAS.), 2x860W titan), 2x10GbE, IPMI

    SUPERMICRO A+ Server 1U 1x SP6, 6x DDR5, 10x 2,5" (6xNVMe opt 4xSAS.), 2x860W titan), 2x10GbE, IPMI

    Výrobce
    Supermicro
    Kód

    AS-SR0401

    Part No.

    AS -1115SV-WTNRT

    Dostupnost

    Není skladem

    (dostupnost na dotaz)
    Vaše cena bez DPH
    38 860 Kč
    DPH
    21%
    Vaše cena s DPH
    47 021 Kč
    Záruka
    36 Měsíce
    Objednat

    Do košíku
    Porovnat Nastavit hlídacího psa

      Podrobnosti o produktu

      1. Single Socket AMD EPYC™ 8004 Series Processor
      2. 6 DIMM slots, DDR5-4800MHz memory, support up to 576GB
        • 2 PCIe 5.0 x16 FHFL;
        • 1 PCIe 5.0 x16 LP
      4. Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
      5. 10 Hot-swap 2.5" SATA(default)/NVMe/SAS drive bays or 6 SATA/NVMe hybrid + 4 SATA drive bays (optional cables or SAS controller card for NVMe and SAS drive bays)


        Product SKUs
        A+ Server AS -1115SV-WTNRT
        Motherboard
        Super H13SVW-NT
        Processor
        CPU
        • Single processor(s)
        • AMD EPYC™ 8004 Series Processor
        Core Count
        • Up to 64C/128T
        Note
        • Supports up to 225W TDP CPUs (Air Cooled)
        GPU
        Max GPU Count
        • Up to 1 double-width or 2 single-width GPUs
        Supported GPU
        System Memory
        Memory
        • Slot Count: 6 DIMM slots
        • Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM
        • View Memory Options
        On-Board Devices
        Chipset
        • System on Chip
        Network Connectivity
        • 2 RJ45 10GBASE-T with Broadcom® BCM57416
        • View AOC Options
        Input / Output
        LAN
        • 1 RJ45 1 GbE Dedicated BMC LAN port
        • 2 RJ45 10 GBASE-T LAN ports
        USB
        • 2 ports(front)
        • 4 ports(rear)
        Video
        • 1 VGA port
        Serial
        • 1 COM port(Rear)
        TPM
        • 1 TPM Onboard/port 80
        System BIOS
        BIOS Type
        • AMI 32MB SPI Flash EEPROM
        BIOS Features
        • ACPI 6.4
        • Plug and Play (PnP)
        • SMBIOS 3.5 or later
        • UEFI 2.8
        • USB Keyboard support
        Management
        Software
        Power configurations
        • 1U redundant 800/860W Titanium AC power supply
        Security
        Hardware
        • Trusted Platform Module (TPM) 2.0
        • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
        Features
        • Cryptographically Signed Firmware
        • Secure Boot
        • Secure Firmware Updates
        • Automatic Firmware Recovery
        • Supply Chain Security: Remote Attestation
        • Runtime BMC Protections
        • System Lockdown
        PC Health Monitoring
        FAN
        • Fans with tachometer monitoring
        • Status monitor for speed control
        • Pulse Width Modulated (PWM) fan connectors
        Temperature
        • Monitoring for CPU and chassis environment
        • Thermal Control for fan connectors
        Chassis
        Form Factor
        • 1U
        Model
        • CSE-116BTS-R000WNP
        Dimensions and Weight
        Height
        • 1.7" (43 mm)
        Width
        • 17.2" (437 mm)
        Depth
        • 23.5" (597 mm)
        Package
        • 7.75" (H) x 23.5" (W) x 31.5" (D)
        Weight
        • Gross Weight: 33.5 lbs (15.2 kg)
        • Net Weight: 21 lbs (9.53 kg)
        Available Color
        • Black
        Front Panel
        LED
        • Fan Fail/System Over Heat LED
        • HDD activity LED
        • Network Activity LEDs
        • Power status LED
        Buttons
        • Power On/Off button
        • Unit Identification (UID) button
        Expansion Slots
        PCI-Express (PCIe) Configuration
        • Default
          • 2 PCIe 5.0 x16 FHFL slots
          • 1 PCIe 5.0 x16 LP slot
        • View AOC Options
        M.2
        • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key)
        Drive Bays / Storage
        Drive Bays Configuration
        • Default: Total 10 bays
          • 10 front hot-swap 2.5" NVMe*/SAS*/SATA drive bays
        • (*NVMe/SAS support may require additional storage controller and/or cables)
        • View NVMe Options
        • View Drive Options
        M.2
        System Cooling
        Fans
        • 6 Heavy duty counter-rotating 40x40x56mm Fan(s)
        Power Supply
        2x 860W Redundant Titanium Level (96%) power supplies
        Dimension (WxHxL) 54.5 x 40.25 x 322 mm
        Input 800W: 100-127Vac / 50-60Hz
        860W: 200-240Vac / 50-60Hz
        860W: 240Vdc / 50-60Hz
        +12V Max: 66.67A / Min: 0A (100Vac-127Vac)
        Max: 71.67A / Min: 0A (200Vac-240Vac)
        Max: 71.67A / Min: 0A (Vdc-240Vdc)
        5V SB Max: 4A / Min: 0A
        Output Type Backplanes (gold finger)
        Operating Environment
        Environmental Spec.
        • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
        • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
        • Operating Relative Humidity: 8% to 80% (non-condensing)
        • Non-operating Relative Humidity: 8% to 90% (non-condensing)
