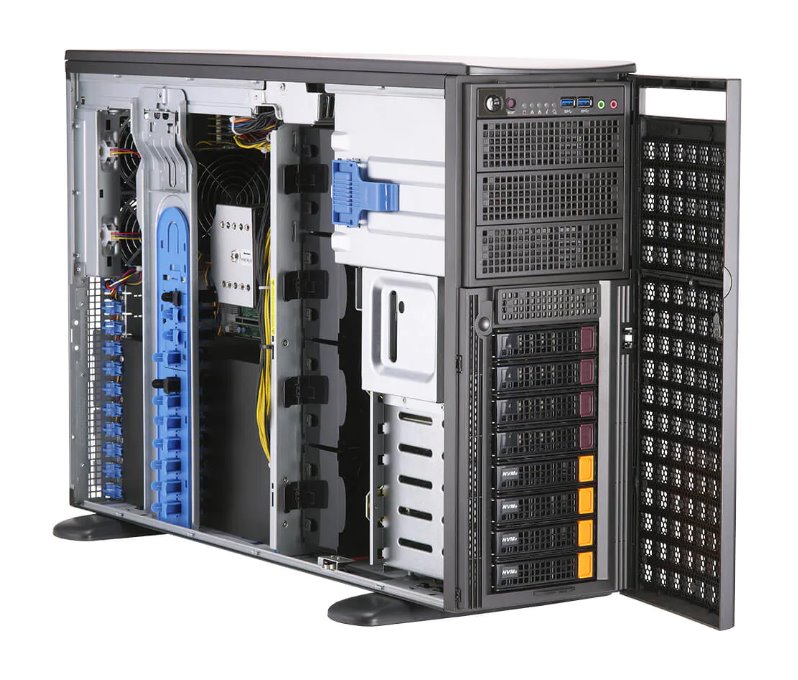

SUPERMICRO 4U server SYS-740GP-TNRT, 2x ICX 6336Y CPU, 16x 16GB DDR4-3200, SSD M2 NVMe PCIe4 960GB, SSD 2.5" NVMe PCIe4 | Netfox - eshop

Výrobce

Supermicro

Kód

AS-SR9216

Part No.

AS-740GPTNRT-OTO-11

Dostupnost

Vaše cena bez DPH

305 250 Kč

DPH

21%

Vaše cena s DPH

369 353 Kč

Záruka

36 Měsíce

Objednat

Porovnat Facebook Nastavit hlídacího psa

Podrobnosti o produktu

Product SKUs

SuperServer SYS-740GP-TNRT

Motherboard

Super X12DPG-QT6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 4 double-width or 6 single-width GPUs
Supported GPU	NVIDIA PCIe: A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, A40, A30, A16, A100, A10 View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe
Certification

System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2 View AOC Options

Input / Output
Video	1 VGA port

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	Full-Tower Rackmount
Model	CSE-747BTS-R2K20BP

Dimensions and Weight
Height	18.32" (465.4 mm)
Width	6.96" (177 mm)
Depth	26.71" (678.5 mm)
Package	12.95" (H) x 27.12" (W) x 38.22" (D)
Weight	Gross Weight: 57 lbs (25.85 kg) Net Weight: 52.9 lbs (24 kg)
Available Color	black

Front Panel
LED	HDD activity Network activity Power On System Overheat / Fan Fail LED
Buttons	Power On/Off System Reset

Expansion Slots
PCI-Express (PCIe) Configuration	Default 4 PCIe 4.0 x16 FHFL slots 2 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot View AOC Options

Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays 4 front hot-swap 3.5" SAS/SATA drive bays 4 front hot-swap 3.5" NVMe/SAS/SATA drive bays View NVMe Options View Drive Options
M.2	2 M.2 NVMe/SATA slots (M-key) View M.2 Options
Peripheral Bays	3 5.25" peripheral bays

System Cooling
Fans	Up to 4 heavy duty fans with optimal fan speed control

Power Supply

1x 2200W Redundant Titanium Level (96%) power supply

Dimension (WxHxL)	76 x 40 x 336 mm
Total Output Power	(for CCC only) (for UL/cUL use only)
Input	1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) 2200W: 230-240Vac 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 100A / Min: 0A (100Vdc-127Vdc) Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 183.3A / Min: 0A (220Vac-240Vac) Max: 174.17A / Min: 0A (230Vac-240Vac) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only) Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
