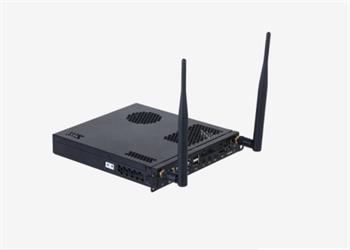

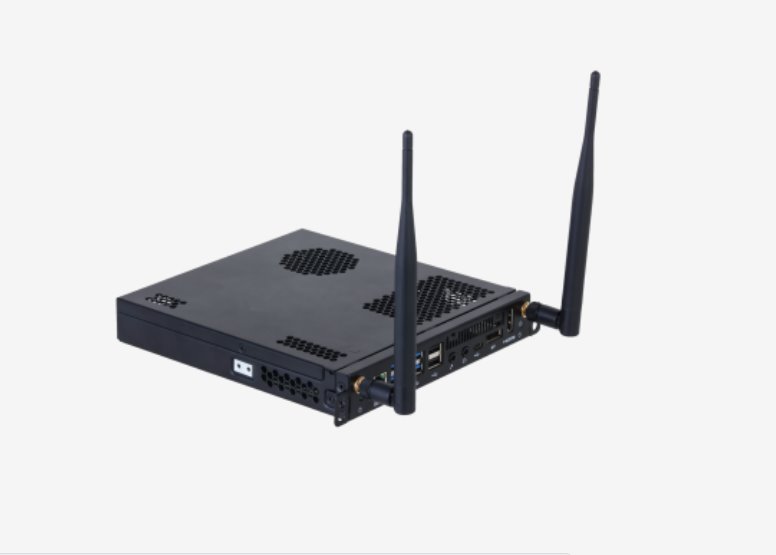

Dahua HMC5100X-H-506B1-W10A-BW Detachable PC Module I5-10400 +16GB+128GB

Detachable PC Module

Supports Intel Open Pluggable Specification China (OPS-C).
Processor: Intel® Comet Lake Core I5-10400, TDP=65W.
Integrated Graphics Card: Intel UHD Graphics 630.
Memory: 1 × 8 GB DDR4.
Storage: 1 × 128 GB M.2 2280 NVMe SSD.
I/O Ports: 1 × JAE 80PIN, 1 x 2.5/5.5 DC IN JACK, 1 × Gigabit Ethernet, 1 × HDMI 1.4, 1 × DP 1.4, 4 × USB3.0, 2 × USB2.0, 1 × Type C, 1 × MIC IN, 1 × LINE OUT.
Built-in Wi-Fi: 802.11a/b/g/n/ac.
Bluetooth 5.0.

Hardware Compatibility

Processor

Intel Comet Lake/Rocket Lake
LGA1200
Max. TDP 65 W

Chip

Intel H510

Memory

2 × SO-DIMM DDR4
Max. RAM: 2 × 16 GB

Storage

1 × M.2 2280 NVMe SSD
1 × SATA 2.5"" SSD/HDD (height ? 7.5 mm)

Discrete Graphics Card

No

Optical Disk Drive

No

Wireless

1 × M.2 2230 Wi-Fi/BT Module
Supports dual-antenna

Display Screen

No

Front Panel

1 × RJ-45, 10/100/1000Mbps
1 × HDMI 1.4, up to 4K, 30 Hz
1 × DP 1.4, up to 4K, 60 Hz
4 × USB 3.0, 2 × USB 2.0
1 × MIC IN, 1 ×LINE OUT
2 × Wi-Fi/BT antenna
1 × Type C
1 × Power button
1 × HDD indicator light

Back Panel

1 x JAE 80pin: 1 × DC IN, 1 × HDMI 2.0, 1 × USB 3.0, 2 × USB 2.0, 1 × UART, 1 × LINE OUT
1 x 2.5 / 5.5 DC IN JACK

BIOS

Insyde firmware

Software Compatibility

Operating System

Supports Windows 10

Hardware Configuration

Processor

Intel® Core™ I5-10400

Memory

1 × 8 GB

Storage

1 x 128 GB M.2 2280 NVMe SSD

Discrete Graphics Card

No

Optical Disk Drive

No

Wireless

WiFi: 802.11a/b/g/n/ac
BT: Bluetooth 5.0

Display Screen

No

Software Configuration

Operating System

Comes preloaded with Windows 10

Application

No

General

Power Supply

12/19 VDC, 7.5/4.7 A

Power Consumption

90 W

Net Weight

1.3 kg (2.87 lb)

Gross Weight

1.7 kg (3.75 lb)

Product Dimensions

180 mm × 30 mm × 195 mm (7.08'' × 1.18'' × 7.68'') (W × H × D)

Packaging Dimensions

308 mm × 293 mm × 123 mm (12.13" × 11.54" × 4.84") (L × W × H)

Operating Temperature

0 °C to +45 °C (32 °F to +113 °F)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Humidity

10%–90% (RH), non-condensing

Operating Altitude

?5000 m (16,404.20 ft)
