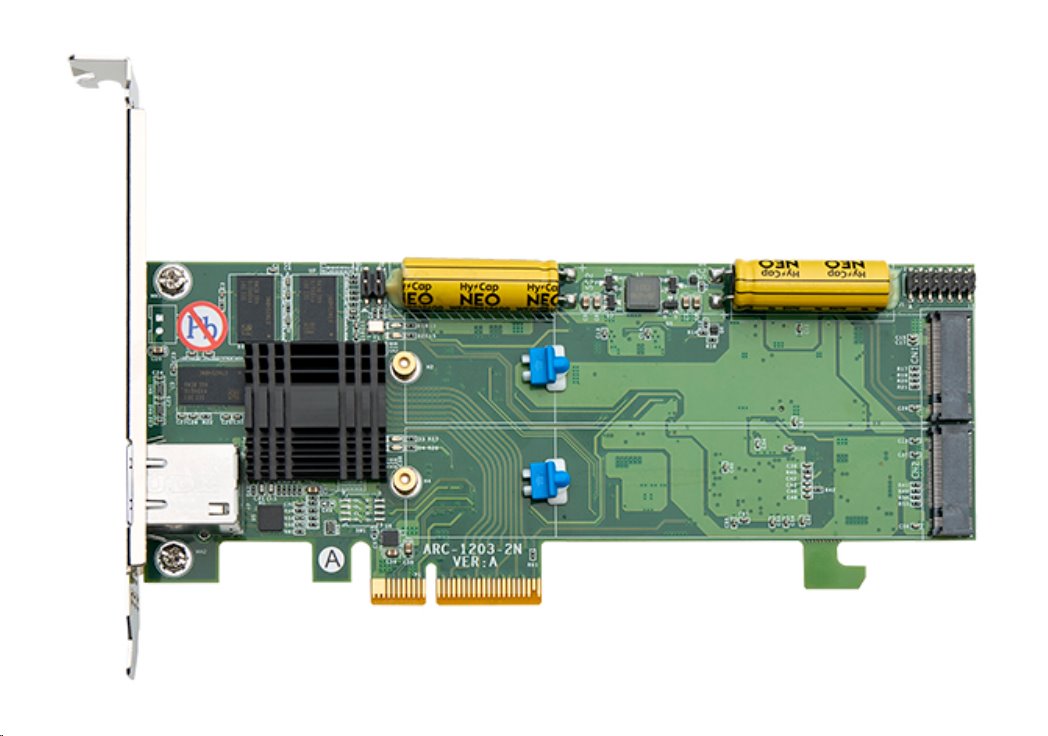

    ARECA 2 Ports PCIe 2.0 x4 to M.2 NVMe RAID Adapter, 512MB cache, 2 x M.2 connectors

    ARECA 2 Ports PCIe 2.0 x4 to M.2 NVMe RAID Adapter, 512MB cache, 2 x M.2 connectors

    Výrobce
    Areca
    Kód

    AS-AR0369

    Part No.

    ARC-1203-2N

    Vaše cena bez DPH
    5 526 Kč
    DPH
    21%
    Vaše cena s DPH
    6 686 Kč
    Záruka
    36 Měsíce
    Objednat

      Podrobnosti o produktu

      Highlights
      ? Supports up to 2 x M.2 drives

      ? Support up to 512B DDR3-1066 cache

      ? Support on-board supercapacitor

      ? Self-encrypting drive management

      ? Support read/write cache allocation by policy

      ? Redundant flash image for adapter availability

      ? Support RAID level 0, 1 and Single Disk(Single/Dual)

      ? Native OS NVMe host drivers

      ? Broad operating support including Native OS NVMe host drivers, Windows, Linux (open source),FreeBSD (open source), Soaris (open source), Mac and VMware



      PCIe 2.0 X4 to M.2 Cached NVMe RAID Adapter
      The Areca ARC-1203-2N NVMe Native RAID host adapter is a PCIe 2.0 x4 bus to 2 ports PCIe 2.0 X1 M.2 disk array host adapter. When properly configured, the M.2 RAID adapter can provide a high degree of performance and fault tolerance with data mirroring for maximum protection. The ARC-1203-2N NVMe RAID adapter is ideal for NVMe boot applications as it naturally provides operating system and recovery data protection that is physically isolated in the system from volume user data. This isolation is critical for applications that require reliable access to the logs and OS boot programs without any chance of being corrupted by user data.

      ARC-1203-2N M.2 Cached RAID Adapters
      RAID-on-Chip Controller ARM_based storage I/O processor@ 1.066 GHz
      Cache Memory 512 MB on-board DDR3-1066 SDRAM with ECC protection
      Host Bus Interface 4-Lane PCI Express® 2.0
      Drive Connectors 2 x M.2 Connectors
      Drive Interface Gen 2.0 X1 PCIe (NVMe)
      Physical Dimensions Low Profile: 168(L) x 64.4(H) mm
      Power Dissipation Typical: 8W
      Operating Temperature 0°C to 60°C with 200 LFM airflow
      Operating Humidity 10% to 85%, non-condensing
      On-board Supercapacitor Yes
      RAID Features * RAID level 0, 1 and Single Disk(Single/Dual)
      * Multiple RAID selection
      * Configurable stripe size up to 1MB
      * Array roaming
      * RAID level/stripe size migration
      * Capacity expansion and RAID level migration simultaneously
      * SED (self-encrypting drives) function support
      * On-board supercapacitor for Non-PLP NVMe drive and LED indicator ready
      * Support NTP protocol synchronize RAID controller clock over the on board Ethernet port
      Operating Systems
      Native OS NVMe host drivers
      Windows
      Red Hat Linux
      SUSE Linux
      FreeBSD
      macOS
      Management Monitor
      McRAID Storage Manager
      Web-based GUI management utility
      Remote configuration, monitoring, and notification
      Graphical-based management utility

      McRAID Utility
      Command-line interface
      CIM provider for VMware
      API code support
      McBIOS Configuration Utility
      Legacy configuration utility
      Flashable BIOS support
      Firmware built-in EFI Shell to launch configuration utility

      Monitors/Notification
      System status indication through M.2 fault LED and alarm buzzer
      SNMP support for remote manager
      SMTP support for email notification
      On-board supercapacitor to keep on M.2 fault LED status for troubleshooting

      https://www.areca.us/support/download/adapter/doc/ARC-1203-2N_installation_guide.pdf
